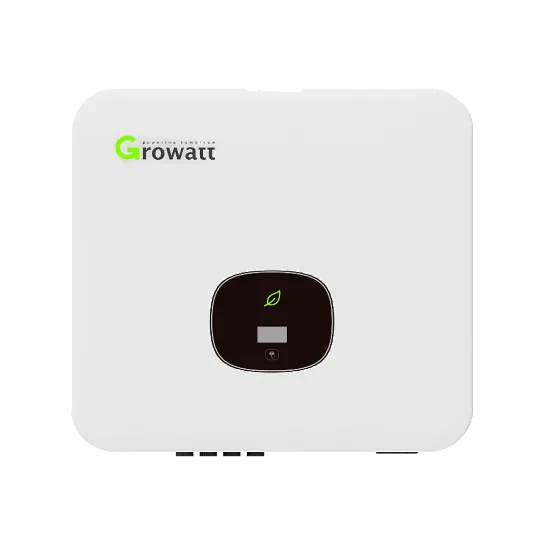

Growatt MIN 5000 TL-XH – 5kW Single-Phase Hybrid Inverter

The Growatt MIN 5000 TL-XH – 5kW Single-Phase Hybrid Inverter is the most powerful model in Growatt’s compact TL-XH range, designed for UK homes and light-commercial installations that require reliable hybrid performance and scalability. With advanced power electronics and intuitive control, it provides clean, efficient energy conversion for properties planning both solar generation and battery storage integration.

High-Efficiency Performance for British PV Systems

Built with dual MPPT trackers and a 70–550V operating window, the Growatt MIN 5000 TL-XH captures maximum energy from your panels, even under mixed orientation or shading conditions. With up to 98.4% peak efficiency and 99.5% MPPT accuracy, it ensures consistent output across the variable light levels typical of British weather. The unit’s hybrid-ready design allows seamless integration with Growatt ARK XH high-voltage batteries, offering direct DC coupling for superior efficiency and response time compared to AC-coupled systems.

This 5kW model provides the flexibility needed for medium-to-large domestic systems, offering more headroom for expansion and higher export capability under G99 connection standards. It’s an ideal option for homeowners or businesses seeking a balance of power, control, and long-term reliability.

Built for Reliability & Protection

Designed with durability and safety at its core, the Growatt MIN 5000 TL-XH features a fully weatherproof IP65-rated aluminium enclosure that protects internal components from dust, rain, and temperature variation. The fanless natural cooling design ensures silent operation below 25dB and reduces maintenance needs.

Safety systems include a built-in DC isolator, Type II surge protection, residual-current monitoring, and anti-islanding protection for full G99 and EN 62109 compliance. Installers benefit from simplified commissioning through the ShinePhone and ShineServer platforms, enabling easy parameter setup and real-time monitoring straight from a mobile device.

Key Features

• Dual MPPT design with 99.5% tracking accuracy
• Peak efficiency 98.4% / Euro efficiency 97.5%
• Fanless, IP65-rated aluminium housing for silent outdoor installation
• Integrated DC isolator and Type II surge protection
• Wi-Fi connectivity standard, with LAN and 4G options available
• Hybrid-ready for Growatt ARK XH battery systems

If you’re wondering how the Growatt MIN 5000 TL-XH performs in the UK’s low-light environment, its wide voltage range and high tracking precision ensure steady power generation even under overcast skies. This makes it one of the most dependable single-phase solar inverters for both performance and long-term resilience in British homes.

Specification data verified from Growatt MIN 2500–6000 TL-XH documentation (Version 1.3, 2024).

Seamless Integration with Solar Panels & Battery Storage

The Growatt MIN 5000 TL-XH is optimised for flexible, scalable system design. It connects directly to modern solar panels and the high-voltage ARK XH LFP battery range, enabling efficient DC-coupled storage without the losses of an AC link. Installers can build from an initial 5–10kWh storage setup and scale up to 25kWh as energy needs evolve, making it ideal for growing households or light-commercial systems.

With intelligent hybrid control and fast switching between PV, battery and grid power, this inverter helps users maximise self-consumption while reducing reliance on expensive peak-rate energy. It’s also compatible with time-of-use tariffs, supporting overnight battery charging to further improve system efficiency and cost savings.

Smart Monitoring & Connectivity

Homeowners and installers benefit from full visibility and control via Growatt ShinePhone and ShineServer, which display generation, consumption and battery performance data in real time. Built-in Wi-Fi comes as standard, with optional LAN and 4G modules available for properties with limited network coverage.

Communication interfaces include RS485, CAN and USB ports for seamless connection to smart meters, battery BMS units and export limiters. This level of connectivity ensures smooth installation and provides a future-ready foundation for smart-home or energy management integrations.

Compact Design & Robust Construction

The Growatt MIN 5000 TL-XH delivers 5kW of output power within a compact footprint of 375×350×160mm and a lightweight 12kg chassis. The IP65 aluminium casing protects against weather and dust, while fanless convection cooling ensures quiet operation (<25dB). This makes it suitable for wall-mounted installation both indoors and outdoors, maintaining a clean and reliable aesthetic for any site.

Installer Guidance & System Notes

Why We Recommend the Growatt MIN 5000 TL-XH

Evergy recommends the Growatt MIN 5000 TL-XH for installers seeking maximum flexibility, high performance, and strong hybrid integration. Its combination of dual MPPTs, exceptional efficiency, and robust IP65 build quality makes it a proven performer in UK conditions.

As part of LAMPS Electrical, Evergy supplies genuine Growatt equipment with verified documentation, technical support, and trade-level expertise. Our Oxfordshire-based renewables team helps installers design, specify and optimise systems with reliability and aftersales confidence.

Choose the MIN 5000 TL-XH for a future-ready hybrid inverter that combines power, safety and long-term value.

Compare in the Growatt MIN TL-XH Range

FAQs – Growatt MIN 5000 TL-XH

For specification support, system pairing advice or trade enquiries, contact Evergy — trusted UK supplier of Growatt inverters, batteries, and PV equipment.
