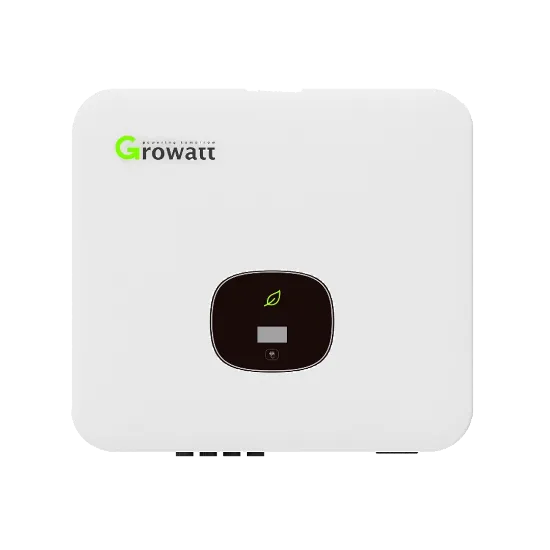

Growatt MIN 2500 TL-XH – 2.5kW Single-Phase Hybrid Inverter

The Growatt MIN 2500 TL-XH – 2.5kW Single-Phase Hybrid Inverter represents the entry point of Growatt’s renowned MIN-XH range, offering exceptional efficiency and hybrid readiness for UK homes seeking solar self-consumption and future battery expansion. Compact yet powerful, this model delivers seamless power conversion with minimal noise and a high build quality trusted by installers worldwide.

High-Efficiency Performance for British PV Systems

Engineered with dual MPPT inputs operating across a 70–500V window, the Growatt MIN 2500 TL-XH ensures optimal power tracking under variable British conditions. Whether dealing with split roof orientations or partial shading, its 99.5% MPPT tracking accuracy and 98.4% peak efficiency help extract the maximum yield from every panel. Intelligent DC-coupled architecture minimises conversion losses, providing more usable energy throughout the year.

Quiet, reliable and installer-friendly, this single-phase solar inverter is perfectly suited for small to medium domestic systems across the UK, offering a durable and efficient alternative to conventional string inverters. Its advanced hybrid design allows easy connection to the Growatt ARK XH battery system for scalable storage capacity without additional components.

Built for Reliability & Protection

The Growatt MIN 2500 TL-XH is purpose-built for the UK climate, featuring a robust IP65-rated enclosure that safeguards internal electronics from rain, dust, and temperature fluctuations. The fanless design provides silent operation (<25dB) with natural convection cooling—ideal for both outdoor walls and utility rooms.

It integrates essential safety features including a built-in DC isolator, Type II surge protection on the DC side, residual-current and insulation monitoring, and anti-islanding protection in line with G99 grid compliance and EN 62109 standards. This comprehensive protection package makes installation faster and ensures long-term peace of mind for both homeowners and electricians.

Key Features

• Dual MPPT inputs with 99.5% tracking accuracy
• Peak efficiency 98.4% / Euro efficiency 97.5%
• Fan-free, IP65-rated aluminium housing for silent outdoor use
• Integrated DC isolator and Type II surge protection
• Battery-ready hybrid inverter for Growatt ARK XH systems
• Wi-Fi, LAN, and 4G connectivity via ShinePhone or ShineServer

If you’re wondering how the Growatt MIN 2500 TL-XH performs in the UK’s variable weather, its wide voltage window and precise MPPT tracking keep the system producing even in low-light or overcast conditions typical of British climates. With its efficient design and hybrid flexibility, it’s one of the best single-phase solar inverters available for domestic users planning long-term energy independence.

Specification data verified from Growatt MIN 2500–6000 TL-XH documentation (Version 1.3, 2024).

Seamless Integration with Solar Panels & Battery Storage

The Growatt MIN 2500 TL-XH is designed for complete compatibility with modern solar panels and high-voltage battery systems. Its hybrid-ready design connects directly to Growatt’s ARK XH lithium battery range, using high-voltage DC coupling to reduce energy losses and improve overall system response. Installers can scale storage from around 5kWh up to more than 25kWh as household energy needs increase — all without replacing the inverter.

Whether installed on a small domestic roof or a light-commercial property, this single-phase inverter delivers consistent, efficient performance with minimal maintenance requirements. The combination of flexibility, reliability and connectivity makes the MIN 2500 TL-XH a future-proof choice for homeowners seeking smart energy independence.

Smart Monitoring & Connectivity

Growatt’s FoxCloud-equivalent monitoring platform, ShinePhone and ShineServer, provides real-time visibility of system performance from any smartphone or PC. The Wi-Fi module is standard, with optional LAN and 4G connectivity available for remote or off-grid applications. Integrated data logging allows installers to track inverter status, energy flow, and self-consumption trends for fine-tuned performance management.

Communication ports include RS485, CAN, and USB for streamlined integration with BMS systems, meters, and smart monitoring accessories. It’s a comprehensive setup that supports both present-day requirements and evolving smart-home connectivity demands.

Compact Design & Rugged Construction

The Growatt MIN 2500 TL-XH offers a refined balance of high performance and installation simplicity. Measuring 375×350×160mm and weighing only 10.8kg, it can be wall-mounted indoors or outdoors without additional brackets. The IP65-rated aluminium chassis resists corrosion and moisture, while the fanless cooling keeps operation below 25dB for near-silent performance — ideal for homes and offices alike.

Installer Guidance & System Notes

Why We Recommend the Growatt MIN 2500 TL-XH

Evergy recommends the Growatt MIN 2500 TL-XH for its dependable hybrid efficiency, installer-focused design, and strong compatibility with the ARK XH battery range. It’s an ideal inverter for homes planning to expand their solar systems into full hybrid setups over time.

As the renewable division of LAMPS Electrical, Evergy supplies genuine Growatt equipment backed by trade experience and technical support across the UK. Our Oxfordshire-based renewables team assists installers and homeowners alike with product pairing and compatibility advice.

Choose the Growatt MIN 2500 TL-XH for future-ready hybrid capability, advanced safety features, and a compact form built to withstand British weather.

Compare in the Growatt MIN TL-XH Range

FAQs – Growatt MIN 2500 TL-XH

For expert product guidance, specification support, or stock availability, contact Evergy — the trusted UK distributor for Growatt hybrid inverters, solar panels, and energy storage systems.
