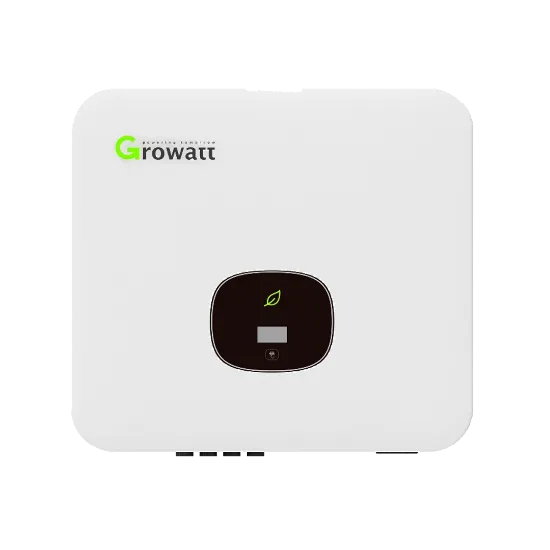

Growatt MIN 3600 TL-XH – 3.6kW Single-Phase Hybrid Inverter

The Growatt MIN 3600 TL-XH – 3.6kW Single-Phase Hybrid Inverter offers an ideal balance of efficiency, flexibility, and compact design for residential and small commercial solar installations across the UK. Positioned in the middle of Growatt’s MIN-XH hybrid range, it provides installers with a dependable solution for battery-ready systems and homeowners with intelligent energy management for years to come.

High-Efficiency Performance for British PV Systems

The Growatt MIN 3600 TL-XH maximises energy harvest through dual MPPT trackers operating across a 70–550V window. With a 98.4% peak efficiency and 99.5% MPPT tracking accuracy, it delivers excellent conversion performance even under partial shading, cloud cover, or multi-roof configurations. Its hybrid-ready architecture supports both grid-tied operation and DC-coupled battery storage without external add-ons.

This single-phase hybrid inverter efficiently manages solar generation and self-consumption, helping homeowners reduce grid reliance and take advantage of lower-cost energy tariffs. Designed to meet the demands of typical UK weather patterns, the unit’s wide operating range ensures consistent yield across low-light mornings and variable irradiance conditions.

Built for Reliability & Protection

Every detail of the Growatt MIN 3600 TL-XH has been engineered for durability and installer convenience. Its IP65-rated aluminium housing protects against rain, dust, and coastal air exposure, while the fanless cooling design ensures silent, maintenance-free operation under 25dB. Integrated safety features include a built-in DC isolator, Type II surge protection, residual-current monitoring, and anti-islanding protection for reliable G99 grid compliance and adherence to EN 62109 safety standards.

With its low weight (approximately 10.8kg) and compact 375×350×160mm footprint, installation is straightforward for professional electricians and renewable installers. Once connected, real-time commissioning and monitoring can be handled easily via Growatt’s ShinePhone or ShineServer platform.

Key Features

• Dual MPPT inputs with 99.5% tracking accuracy
• Peak efficiency 98.4% / Euro efficiency 97.5%
• Fanless IP65 aluminium housing for quiet outdoor operation
• Integrated DC isolator and Type II surge protection
• Wi-Fi connectivity with optional LAN or 4G modules
• Hybrid-ready for Growatt ARK XH high-voltage battery system

If you’re wondering how well the Growatt MIN 3600 TL-XH performs during typical British weather, its wide MPPT voltage range and precision tracking allow it to maintain output even during low irradiance or overcast conditions. This reliability, coupled with its battery-ready flexibility, makes it one of the best single-phase inverters for home use in the UK.

Specification data verified from Growatt MIN 2500–6000 TL-XH documentation (Version 1.3, 2024).

Seamless Integration with Solar Panels & Battery Storage

The Growatt MIN 3600 TL-XH integrates effortlessly with modern solar panels and high-voltage battery systems. Using Growatt’s ARK XH LFP battery platform, it supports DC-coupled energy storage for minimal conversion losses and faster charging response. Installers can start with smaller capacities around 5–10kWh and expand up to 25kWh without changing the inverter, making it an adaptable choice for growing households or small businesses.

This scalable approach, combined with smart hybrid control, ensures optimal solar utilisation and self-consumption. It’s equally at home in single-family dwellings, small offices, or workshops where quiet operation and dependable backup power are essential.

Smart Monitoring & Connectivity

With built-in Wi-Fi connectivity and optional LAN or 4G modules, the Growatt MIN 3600 TL-XH gives full visibility of system performance through the ShinePhone and ShineServer platforms. Homeowners can monitor generation, consumption, and battery charge in real-time from any device, while installers benefit from advanced remote diagnostics and commissioning tools.

Communication interfaces include RS485, CAN, and USB for integration with meters, BMS units, and energy management accessories. This level of connectivity ensures both flexibility and long-term compatibility with smart-home systems and evolving energy standards across the UK.

Compact Design & Robust Build

Designed with installer practicality in mind, the Growatt MIN 3600 TL-XH combines compact dimensions of 375×350×160mm with a lightweight 10.8kg build for effortless handling. The IP65-rated aluminium housing and fanless cooling design provide protection against rain and dust, maintaining quiet operation under 25dB — ideal for wall-mounted outdoor or utility-room setups.

Installer Guidance & System Notes

Why We Recommend the Growatt MIN 3600 TL-XH

Evergy recommends the Growatt MIN 3600 TL-XH for its blend of reliability, high performance, and installer-focused features. Its robust IP65 design, quiet operation, and hybrid-ready architecture make it a dependable option for UK residential and light-commercial PV systems. With strong efficiency and proven compatibility with ARK XH batteries, it’s a genuine future-proof investment.

As part of LAMPS Electrical, Evergy provides verified Growatt products, professional trade support, and nationwide supply coverage. Our renewables team, based in Oxfordshire, helps installers and end-users choose the best equipment for their system design.

Choose the MIN 3600 TL-XH for dependable hybrid performance, modern connectivity, and British weather resilience built into every detail.

Compare in the Growatt MIN TL-XH Range

FAQs – Growatt MIN 3600 TL-XH

For compatibility checks, specification support, or system design assistance, contact Evergy — the UK’s trusted supplier of Growatt solar inverters, batteries, and PV equipment.
