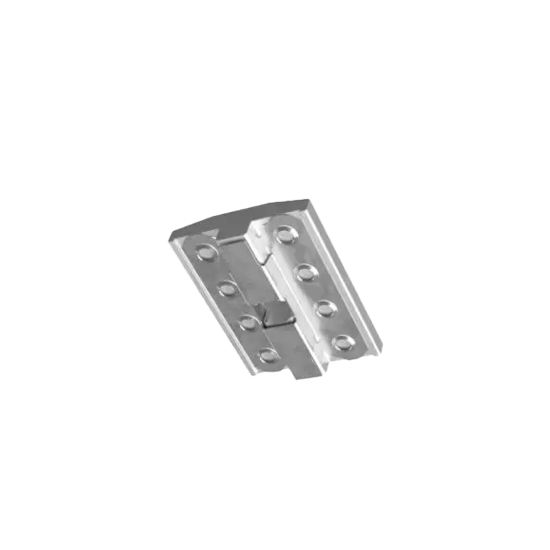

Esdec Universal Mid Clamp - Bonding Ready, UK PV

Esdec Universal Mid Clamp with Bonding – Secure & Compliant PV Mounting

The Esdec Universal Mid Clamp with Bonding (SKU: 1003022) in a standard aluminium finish is an essential component for professional UK solar PV installers. Engineered for efficiency and compliance, this innovative mid clamp integrates electrical bonding directly into its design, significantly streamlining the installation process for both pitched and flat roof solar systems. As a critical part of a robust solar mounting system, it ensures secure panel fastening while meeting critical earthing requirements for MCS-compliant installations.

This universal solution removes the need for separate bonding clips, saving valuable time and material costs on-site. Designed for seamless integration within the Esdec ecosystem, it's the ideal choice for installers prioritising speed, safety, and long-term reliability in their residential and commercial projects.

Key Features for Professional Installers

• Integrated Electrical Bonding: Simplifies system earthing, reducing installation time and the need for additional components.
• Universal Compatibility: Designed for use within the Esdec ClickFit EVO and FlatFix Wave systems, accommodating common module frame heights (typically 30-50mm).
• Robust Aluminium Construction: Crafted from high-quality aluminium, ensuring durability and corrosion resistance for long-term performance in various weather conditions.
• Standard Finish: A clean, standard aluminium finish that blends seamlessly with most solar panel aesthetics.
• MCS Compliance Ready: Supports the electrical safety and mechanical integrity requirements of MCS-compliant solar PV installations in the UK.

Technical Specifications & Compliance

This Esdec Universal Mid Clamp (1003022) is engineered to provide a secure and electrically bonded connection between solar panels and the mounting structure. While specific torque values for the clamp itself are determined by the overall Esdec system and installation guide, its design ensures optimal panel grip and integrated earthing capability.

• Material: High-grade Aluminium
• Finish: Standard Aluminium
• Panel Frame Height Compatibility: Typically 30-50mm
• System Compatibility: Designed for use within the Esdec ClickFit EVO and FlatFix Wave mounting systems.
• Bonding: Integrated electrical bonding for system earthing.
• Standards: Engineered to contribute to solar PV systems compliant with relevant UK building regulations and European standards for mechanical loads (e.g., aspects of EN 1991) and electrical safety (e.g., BS 7671 for earthing requirements when installed correctly).

For detailed installation instructions and system-specific torque settings, always refer to the official Esdec installation manuals provided with the full mounting system. This clamp is part of a complete solution designed to meet rigorous performance and safety criteria.

Benefits for Your Solar Projects

Choosing the Esdec Universal Mid Clamp with Bonding brings significant advantages to your solar PV installations:

• Enhanced Efficiency: The integrated bonding feature drastically cuts down on installation time, allowing your teams to complete projects faster and move on to the next job.
• Cost Savings: By eliminating the need for separate earthing components and reducing labour, you'll see a direct impact on your project costs.
• Guaranteed Compliance: This clamp helps ensure your installations meet critical electrical safety and earthing standards required for UK MCS certification, providing peace of mind for both installers and end-users.
• Superior Durability: Constructed from robust aluminium, the clamp offers long-lasting performance and resistance to environmental factors, extending the lifespan of the solar array.
• Simplified Logistics: One component handles both clamping and bonding, reducing inventory management and potential errors on site. This specific clamp is a key part of our Esdec Universal Mid Clamp with Bonding product range and complements solutions like the Esdec ClickFit Evo Universal Clamp Standard Finish.

Frequently Asked Questions (FAQs)

Order Your Esdec Universal Mid Clamp with Bonding Today

Equip your team with the efficient and compliant Esdec Universal Mid Clamp with Bonding (1003022) from Evergy UK. Simplify your solar installations, ensure robust panel security, and meet earthing requirements with ease. Available for immediate dispatch, take advantage of our competitive trade accounts and bulk pricing for your next project.
