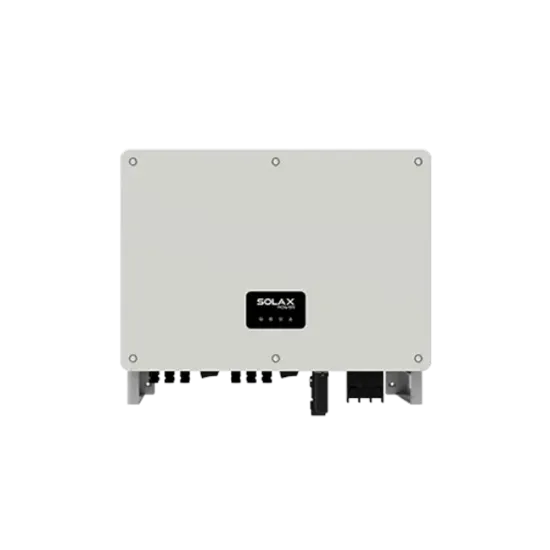

SolaX X3-MEGA G2 40kW Three-Phase String Inverter

A serious commercial inverter for larger three-phase solar systems

SolaX X3-MEGA G2 40kW Three-Phase String Inverter is designed for commercial and industrial solar projects where residential hardware is no longer appropriate. It is built for larger rooftops, agricultural premises, workshops, warehouses and similar three-phase sites that need substantial inverter output along with enough MPPT flexibility to keep array design practical and efficient.

The 40kW size is especially useful because it sits at a commercially sensible point in the market. It is large enough for serious medium-to-larger commercial generation, but not so large that it forces projects into unnecessary capacity. That makes it a strong option where the system size is substantial but still proportionate to a 40kW inverter platform.

Why the 40kW version matters

This model supports up to 60kWp of recommended PV input and uses four MPPTs with two strings per tracker. That gives installers meaningful flexibility across roof sections, grouped array areas or varied site layouts without pushing the project into a bigger inverter than necessary. For many commercial rooftops, four MPPTs is exactly the right amount of tracking flexibility to keep system design tidy and effective.

It also supports 150% PV oversizing and 110% overloading output, which is increasingly important on current commercial solar designs. Module power has moved on, and projects often want stronger DC headroom so the inverter does not become overly conservative on the input side. This version gives that room while staying well matched to medium-to-larger commercial installations.

Core technical features

• 40kW rated three-phase output
• Up to 60kWp recommended PV input
• Four MPPTs with two strings per tracker
• 150% PV oversizing and 110% overloading output
• 180 to 1000V MPPT range with 200V start-up voltage
• Maximum 32A input current and 46A short-circuit current per MPPT
• Type II SPD on both AC and DC
• Built-in export control
• Smart string current monitoring and I-V curve diagnosis
• Optional AFCI, APS, PLC and 24-hour monitoring support

Those figures matter because they make the inverter much easier to apply on real sites. The wide voltage range helps with commercial string design, the current handling is better aligned with higher-power modern modules, and the MPPT count helps avoid crude or over-simplified array grouping on larger roofs.

Operational visibility and commercial practicality

The X3-MEGA G2 platform is built with connected operation in mind. This 40kW model supports remote setting and upgrading, string current monitoring, smart diagnostics and multiple communications options. For commercial sites, that matters because system visibility, remote troubleshooting and easier maintenance all help reduce downtime and improve long-term management.

Built-in export control is another significant advantage. On many commercial installations, export behaviour is a major part of the system brief rather than a nice extra. Having that capability at inverter level helps simplify design and supports better site integration from the start.

Protection, cooling and installation

SolaX equips the X3-MEGA G2 40kW with Type II surge protection on both AC and DC, backed by a wider protection package that includes grid monitoring, anti-islanding protection, over-temperature protection and other key commercial safeguards. Optional AFCI support is also available on the platform where project specification calls for it.

Physically, the inverter measures around 630 x 521 x 286 mm and weighs roughly 44kg. Smart fan cooling and an IP66 enclosure help reinforce its suitability for demanding commercial environments, including outdoor or semi-exposed mounting positions where normal best-practice siting is followed.

Who it suits best

This inverter is best suited to medium-to-larger commercial rooftops, agricultural buildings, industrial workshops and three-phase premises where a serious but proportionate inverter is required. It works particularly well on sites that need stronger PV input support, four MPPTs and built-in export control without stepping immediately into the 50kW or 60kW versions.

That balance is what makes the 40kW model so useful. It offers real commercial capability and flexible design without asking the project to pay for more output than the system actually needs.

Final view

SolaX X3-MEGA G2 40kW Three-Phase String Inverter is a well-judged commercial inverter for projects that need substantial PV support, four-MPPT flexibility and a connected, protection-rich inverter platform. With up to 60kWp of PV input support, 150% oversizing, 110% overload output, Type II SPD on AC and DC, export control and IP66 protection, it is a strong fit for serious three-phase commercial solar work.
