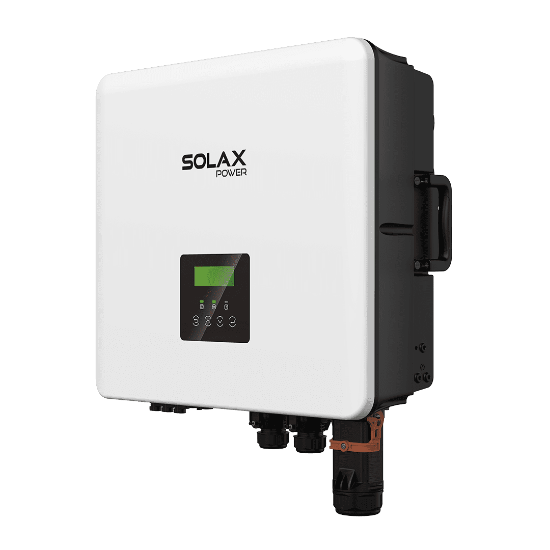

SolaX X3 Hybrid G4 10kW Three Phase Hybrid Inverter

ÂŁ1899.00

Maximise your solar energy usage with the powerful SolaX X3 Hybrid G4 10kW inverter. This three-phase hybrid inverter efficiently manages energy from your solar panels, storing excess power in solar batteries for use when needed, helping you reduce reliance on the grid and potentially lower costs with favourable energy tariffs.

  • High Efficiency: Achieves up to 97.5% charge/discharge efficiency, ensuring minimal energy loss.
  • Flexible & Powerful: Supports 200% PV oversizing and 110% AC overload output.
  • Reliable Backup: Features a rapid <10ms switchover time for seamless power during outages.

Why We Recommend This Product: Ideal for larger homes or small businesses with three-phase power, offering robust performance and intelligent energy management to significantly cut electricity bills.

SKU: X3-HYBRID-10.0-D
Free and easy returns | Easy to Install | Professional Installers Available
*
Share:

SolaX X3 Hybrid G4 10kW: The High-Capacity Three-Phase Hybrid Inverter for Energy Independence

Take control of your energy generation and consumption with the sophisticated SolaX X3 Hybrid G4 10kW inverter. Designed for properties with three-phase electricity, this advanced unit integrates seamlessly with your solar PV panels and battery storage, such as the compatible SolaX Triple Power batteries. It intelligently directs solar power to your home, charges your batteries, or exports excess to the grid, putting you in charge of your energy future and helping manage costs associated with varying energy tariffs.

Harness More Solar Power: Enhanced PV Input & Efficiency

The X3 Hybrid G4 10kW pushes the boundaries of energy capture. Supporting a remarkable 200% PV input oversizing (up to 20,000Wp, according to the datasheet) and 110% AC overload output, you can connect larger solar arrays to maximise generation throughout the day. Its high charge and discharge efficiency of up to 97.5% means less energy is wasted converting power for storage or use. The unit also features built-in shadow tracking to optimise output even in partially shaded conditions.

Intelligent Energy Management: Smart Features & Flexibility

This inverter offers smart control over your energy. It's compatible with both lithium-ion and lead-acid batteries and boasts intelligent load management capabilities. With five distinct work modes and two charging periods available, you can tailor its operation to suit your lifestyle and take advantage of off-peak electricity rates. The supplier information highlights its ability for on and off-grid parallel use (up to 150kW) and readiness for VPP (Virtual Power Plant) applications [cite: 2.1, 29, 30]. Consider pairing it with the 5kW, 8kW, or 15kW models for scalable solutions.

Uninterrupted Power & Robust Design: Reliability Assured

Experience peace of mind with the X3 Hybrid G4's built-in Emergency Power Supply (EPS). It offers a 150% EPS overload output for 10 seconds and switches over in less than 10 milliseconds, ensuring your essential circuits remain powered during grid outages. Built to last, it features IP65 protection against dust and water ingress and integrated Surge Protection Devices (SPD). The manufacturer's datasheet confirms it can operate effectively even in extremely cold conditions down to -35°C. It also comes with a standard warranty, detailed in the warranty document available on the supplier's website.

Why Evergy Recommends This Product

The SolaX X3 Hybrid G4 10kW is a top-tier choice for substantial residential or commercial properties requiring three-phase power. Its key strengths include:

  • High Power Handling: Manages large solar arrays (up to 20kWp PV input) and significant loads effectively.
  • Superior Efficiency: Minimises energy loss during conversion and storage.
  • Smart Grid Ready: Packed with intelligent features for optimal self-consumption, tariff management, and future VPP participation.
  • Reliable Backup: Fast EPS switchover keeps essential appliances running during blackouts.

Technical Highlights

Based on the product datasheet, key specifications include:

  • Max. DC Input Power: 20,000W
  • Nominal AC Output Power: 10,000W
  • Max. Efficiency: 98.0%
  • Battery Voltage Range: 180-800V

For full details, please refer to the specification tab or the downloadable datasheet.

Explore Your Solar Options

Ready to optimise your energy? Combine the SolaX X3 Hybrid G4 10kW with high-performance solar panels, efficient solar batteries, and reliable solar mounting systems. Don't forget optimisers and meters for system monitoring. Browse our full range of solar inverters or contact us for expert advice.

Attribute name Attribute value
Phases 3
Backup EPS, <10ms switchover
IP Rating IP65
Efficiency 98%
Max DC Power 15 kW
Power Rating 10.0 kW
PV Oversizing Up to 150%
Max AC Current 16.1 A
MPP Voltage Range 200-950 V
Charge/Discharge Capacity 30A
SOLAX

Established in 2012, SolaX is an internationally renowned provider of photovoltaic energy storage systems. They offer energy storage inverters, batteries, and grid-connected solutions to customers worldwide. SolaX ranks among the top three globally in market share for household photovoltaic energy storage systems.
