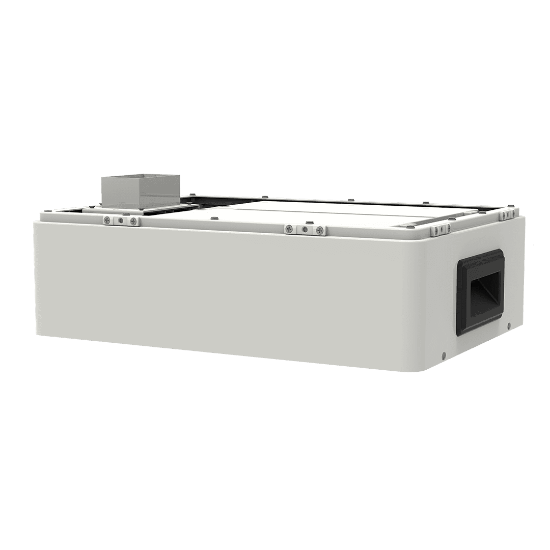

SolaX Triple Power TP-HS36 3.6kWh Solar Battery Module

SolaX Triple Power TP-HS36: The Scalable Solar Battery Module for Smarter Home Storage

The SolaX TP-HS36 3.6kWh battery module is a high-performance energy storage unit built for flexibility and long-term reliability. Designed for seamless integration with SolaX’s hybrid and retrofit inverters, it forms the building block of an intelligent solar battery system that adapts to your energy needs.

Whether you’re starting small or planning to expand, this modular LFP unit ensures maximum safety, extended lifespan, and scalable capacity for residential solar systems.

Flexible Expansion for Growing Energy Needs

Each TP-HS36 module delivers 3.6kWh of usable energy storage and can be scaled up to five units per system, totalling 18kWh. This makes it ideal for households that want to start with a single battery and grow their system over time as usage increases or solar generation improves.

The battery communicates via CAN/RS485 and connects with a compatible Battery Management Unit (BMU), ensuring smooth expansion and system monitoring.

Safe, Long-Lasting LFP Technology

The TP-HS36 uses lithium iron phosphate (LiFePO₄) chemistry, known for its superior thermal stability, deep cycling capabilities, and long lifespan. This ensures not only maximum charge/discharge performance but also peace of mind in terms of fire safety and cell degradation.

• Over 6,000 cycles at 90% DOD
• Certified to IEC62619 and UN38.3 standards
• Natural cooling – no active fan required

Seamless Integration with SolaX Ecosystem

Built specifically for the SolaX Triple Power ecosystem, this battery pairs perfectly with SolaX X1 and X3 Hybrid inverters, retrofit AC-coupled inverters, and the required BMU (available here).

Installation is straightforward, with quick-connect wiring and intuitive stackable design, saving both time and installer effort.

Reliable Performance with Long-Term Warranty

The TP-HS36 is backed by a 10-year warranty from SolaX, providing assurance of long-lasting performance and quality. According to the datasheet, the battery maintains excellent capacity retention over thousands of cycles, making it a low-maintenance solution for daily energy shifting.

Why Evergy Recommends This Product

We recommend the TP-HS36 for its ideal blend of performance, safety, and scalability. It’s the perfect entry point for anyone looking to take control of their solar storage while keeping future expansion options open. For systems needing higher capacity, consider pairing with additional TP-HS36 units or explore larger battery modules in our solar battery range.

Ideal for Modular Residential Systems

This battery is suited to homeowners looking for a flexible, long-lasting energy storage solution. Whether you’re self-consuming solar, maximising off-peak tariffs, or protecting against grid instability, it delivers dependable results with minimal fuss.

Technical Specifications

• Usable Energy: 3.6kWh
• Dimensions: 510mm x 365mm x 152mm
• Weight: 33.5kg
• Battery Type: Lithium Iron Phosphate (LFP)

Full specifications are available under the 'Specs' tab above.

Compatible With Solar Tariffs

Used with the correct inverter, the TP-HS36 enables smart charging and discharging based on time-of-use tariffs. This makes it well-suited to variable-rate energy plans like Octopus Flux and other export-optimised schemes.

Need Installation Help?

Need help sizing or installing your solar battery setup? Contact our team to connect with an expert installer or explore suitable inverters and accessories in our solar inverter and meter collections.

FAQs

Q: Can I expand my system later?
A: Yes, you can connect up to 5 TP-HS36 modules per system using the required BMU.

Q: Does this battery need active cooling?
A: No. It uses natural cooling, meaning no noisy fans or extra energy use.
