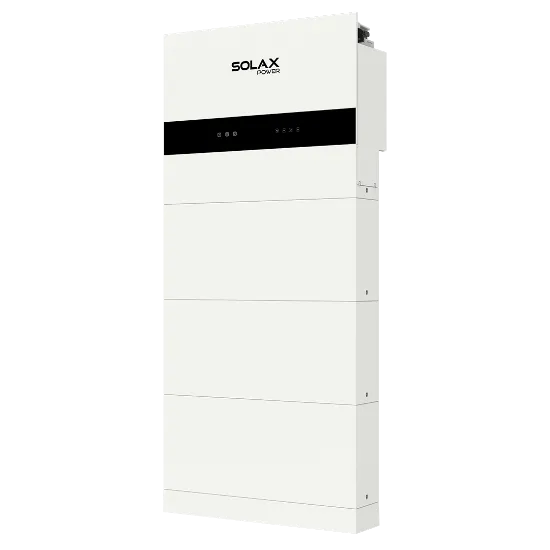

SolaX X1-IES 6.0kW Single Phase Hybrid Inverter

SolaX X1-IES 6.0kW: The Intelligent Hybrid Inverter for Energy-Smart Homes

The SolaX X1-IES 6.0kW inverter is built for modern British households seeking solar independence, battery backup, and full control over energy use. With three MPPT trackers, high-voltage battery compatibility, and seamless emergency power switching, it’s one of the most advanced single-phase hybrids available. Whether you’re installing for self-consumption, backup resilience or future grid integration, this unit delivers flexibility and efficiency in a compact format.

Unmatched Solar Flexibility with 200% Oversizing

Designed to extract the maximum from your solar array, the X1-IES 6.0kW supports PV inputs up to 12kW , double its rated output. This means you can generate more during low-light days and still export or store efficiently. Its 3 MPPTs allow you to split your array orientation and shading to maximise performance across roof spaces.

• 200% PV oversizing (up to 12,000W DC)
• 3 MPPTs for complex roof configurations
• Smart export control and remote adjustment

Hybrid Inverter with High Voltage Battery Integration

The X1-IES series is fully compatible with SolaX’s Triple Power high-voltage batteries, allowing scalable storage up to 20.4kWh. It also supports third-party battery options with CAN or RS485 protocols, making it a versatile hub for any residential solar-plus-storage setup.

• Compatible with SolaX HV batteries (5.8kWh–20.4kWh)
• Supports CAN/RS485 for wider battery options
• Max 30A charge/discharge current

EPS Backup Power with UPS-Class Switching

During grid failures, the X1-IES switches to EPS (emergency power supply) mode in under 10 milliseconds, fast enough to keep sensitive electronics running. It even allows up to 200% EPS output for 10 seconds, supporting power-hungry devices during switchover events.

• <10ms switchover time
• 200% EPS output for 10s peak loads
• Supports off-grid and micro-grid operation

Engineered for Long-Term Reliability and Safety

With an IP66-rated enclosure, the X1-IES can be installed outdoors or indoors with complete confidence. It meets all required UK grid compliance certifications, supports 24/7 remote monitoring through SolaX Cloud, and comes with a 10-year manufacturer warranty as standard.

• IP66 waterproof and dustproof design
• G99 certified and EN 50549-1 compliant
• 10-year standard warranty

Why Evergy Recommends This Product

This inverter is one of the most advanced options for homes combining solar with battery storage. We recommend it for its high PV oversizing capability, seamless EPS backup, and forward-thinking features like smart load shifting and multi-protocol battery compatibility.

• Perfect for solar-plus-battery setups in UK homes
• Ideal for smart energy tariff use and future grid participation
• Easy remote access via Wi-Fi, Ethernet or 4G dongle

Designed for Smart, Storage-Driven Households

The X1-IES 6.0kW is best suited to energy-conscious homeowners with medium to large PV systems who want flexibility to manage generation, storage and usage , including support for time-of-use tariffs and load priorities.

Key Technical Specifications

• Max PV Input: 12,000W DC (200% oversizing)
• Battery Voltage Range: 85–460V
• Dimensions: 482 × 417 × 181 mm
• Weight: 22–25 kg

For full details, see the datasheet or specification tab.

Complete Your System with Evergy

Pair the SolaX X1-IES 6.0kW inverter with solar panels, compatible HV batteries, mounting systems and optimisers for a complete solution. Learn more about UK home solar in our solar system guide.

FAQs

Q: Can I use this inverter without a battery?
A: Yes -  the X1-IES can operate as a grid-tied inverter only, but it’s best suited to hybrid systems for full benefit.

Q: Is it compatible with Octopus Intelligent or agile tariffs?
A: Yes - through smart load control and scheduling via SolaX Cloud, you can optimise for low-rate charging and export.
