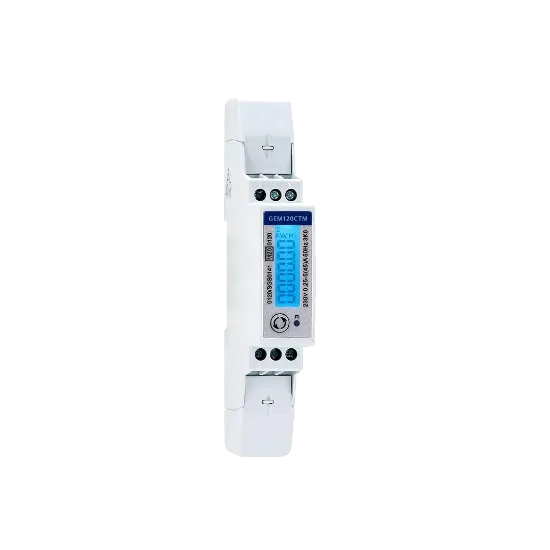

GivEnergy GEM120 Single‑Phase Energy Meter (with CT)

GivEnergy GEM120: The Compact Single-Phase Energy Meter for Smart Solar Monitoring

The GivEnergy GEM120 energy meter is purpose-built for accurate, real-time tracking of energy flow in single-phase residential systems. Designed to integrate seamlessly with GivEnergy inverters, this CT-operated meter enables homeowners to monitor consumption, generation, and export from one intuitive platform.

Precise Energy Monitoring for Home Systems

The GEM120 offers high accuracy for energy tracking, with CT programmability and Modbus output for direct communication with GivEnergy systems. Whether you’re monitoring solar generation or keeping tabs on import/export behaviour, this meter provides reliable insight.

The backlit LCD screen displays multiple parameters clearly and remains readable in low light conditions. All configuration is managed via the front panel for a fast setup process.

Compact, Discreet, and Easy to Install

At just 17.5 mm wide, the GEM120 is ideal for consumer units or tight spaces. It mounts easily on standard DIN rails and is protected to IP51 at the front, offering a solid balance of durability and convenience for domestic installs.

Designed for Seamless System Integration

This meter has been developed specifically for GivEnergy compatibility. It works out of the box with GivEnergy hybrid and AC-coupled inverters and can be used to help balance battery discharge, export limits, or tariff automation features where enabled.

Technical Specifications

• Dimensions: 119 mm (H) × 17.5 mm (W) × 62 mm (D)
• Input: CT-operated, programmable ratio
• Output: RS-485 Modbus
• Mounting: DIN rail
• Weight: ~0.20 kg

Ideal For Residential GivEnergy Installations

Best suited for single-phase households with a GivEnergy inverter setup, where accurate consumption and export data is key to system performance or energy tariff optimisation.

Warranty & Build Quality

Built with robust materials and an IP51-rated front, this meter is designed for stability over time. Operating temperature range spans from -25°C to +55°C, ensuring consistent reliability across UK conditions.

Frequently Asked Questions

• Is the GEM120 compatible with all GivEnergy inverters?
  Yes, it's designed for direct integration with GivEnergy single-phase hybrid and AC-coupled systems.
• How is the current measured?
  This unit uses a CT clamp and can be configured for various current ratios depending on system design.
• Does this meter support solar export monitoring?
  Yes – it tracks both import and export to and from the grid in real time.
• Can this be used with other brands?
  It communicates using Modbus, but best performance and full feature access is achieved when used with GivEnergy systems.

Order from Evergy

Upgrade your solar monitoring with the GivEnergy GEM120, available now from Evergy , trusted by UK installers and backed by expert support.
