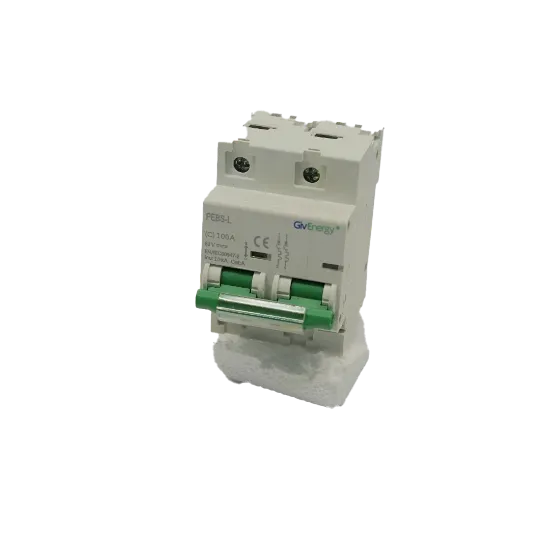

Picture of GivEnergy 100 A DC Miniature Circuit Breaker

GivEnergy 100 A DC Miniature Circuit Breaker

£18.37

The GivEnergy 100 A DC Miniature Circuit Breaker delivers fast-acting protection for battery and PV systems, handling up to 160 V DC with 10 kA breaking capacity.

  • Rated to 125 A and 160 V DC (2P)
  • Thermal-magnetic tripping with B or C curve
  • DIN-rail mountable with compact IP40 housing

Why We Recommend This Product: Ideal for integrating battery storage safely into DC-coupled solar systems, especially where compact, robust switching is essential.

SKU: GIV-DCMCB100A
Free and easy returns | Easy to Install | Professional Installers Available
Share:

GivEnergy 100 A DC Miniature Circuit Breaker: The Compact Safety Device for DC Solar and Storage

Engineered for protection in battery and solar installations, the GivEnergy 100 A DC Miniature Circuit Breaker provides fast tripping, arc suppression and high load capacity for up to 160 V DC systems.

Safe Integration for Battery and PV Circuits

This breaker is built to be installed between batteries and inverters in PV and storage systems. With up to 125 A current capacity and 10 kA breaking capability, it offers safety where it matters most.

Its thermal-magnetic tripping (B or C curve) enables responsive protection from both overload and short-circuit faults.

Compact Design with Flexible Mounting

The PEBS-L series breaker fits neatly on a DIN rail and offers IP40/IP20 ingress protection, making it suitable for residential and commercial boards. It supports 1P and 2P options depending on DC voltage level.

High Reliability and Long Lifecycle

Built to handle thousands of cycles, the breaker offers dependable protection across various environments, with operation between -30°C and +70°C and up to 95% humidity tolerance.

Technical Specifications

  • Rated Voltage: 80–160 V DC
  • Rated Current: Up to 125 A
  • Breaking Capacity: 10 kA
  • Weight: 0.24 kg (2-pole)

Ideal For Solar and Battery Safety

Designed for safe current isolation in DC environments. Suitable for installers working with hybrid or off-grid systems requiring robust overload protection.

Warranty & Build Quality

Manufactured to EN 60947-2 standards with arc barrier and anti-flash design. Mechanical life exceeds 10,000 cycles.

Frequently Asked Questions

  • Can this breaker handle 160V DC?
    Yes, the 2P version supports up to 160V DC applications.
  • Is this compatible with all GivEnergy systems?
    It is suitable for any DC line protection between GivEnergy batteries and inverters.
  • Is the breaker polarity sensitive?
    No, it is non-polar and supports flexible wiring.

Order from Evergy

Protect your GivEnergy DC system with this high-quality circuit breaker, available from Evergy with UK delivery and expert support.
