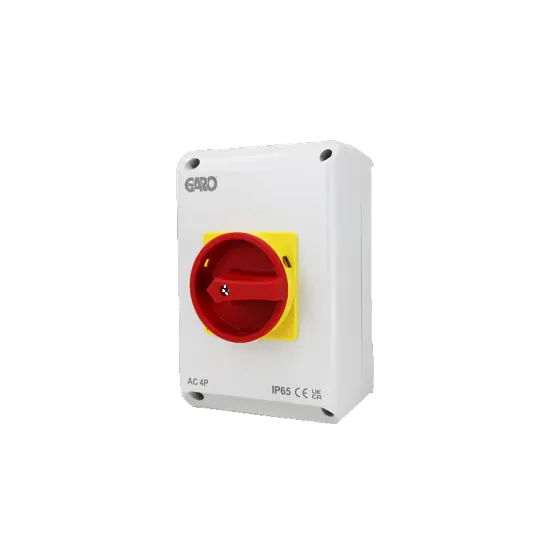

Picture of Garo SIAC420IP65 AC Safety Switch 20 Amp 4 Pole IP65 Isolator

Garo SIAC420IP65 AC Safety Switch 20 Amp 4 Pole IP65 Isolator

£10.35
Garo SIAC420IP65 20A 4P AC Isolator | Compact Weatherproof Switch | Garo

Safely isolate AC circuits with the compact Garo SIAC420IP65, a reliable 20A 4-pole IP65 weatherproof isolator switch.

  • Dependable 20A Isolation: Provides safe switching for AC circuits up to 20A, suitable for lighting or smaller inverter outputs.
  • Compact & Weatherproof: Features a space-saving design with an IP65 rated enclosure for dust and water protection.
  • Secure Operation: Includes an interlocked, padlockable handle for safe maintenance lockout.

The SIAC420IP65 is an excellent choice for reliable, lower-current AC isolation, ideal for specific circuits, smaller solar inverters, or outdoor lighting controls.

SKU: SIAC420IP65
Free and easy returns | Easy to Install | Professional Installers Available
Share:

Garo SIAC420IP65: The Compact & Reliable 20A AC Isolator Switch

The Garo SIAC420IP65 offers dependable AC isolation in a compact package. This 20A, 4-pole (3P+N) safety switch is perfect for isolating specific AC circuits, such as outdoor lighting, small machinery, or the AC output from microinverters or smaller string solar inverters. Its IP65 rating ensures reliable performance even when installed outdoors or in dusty environments.

Reliable AC Circuit Control

Designed to handle currents up to 20A (AC-22), the SIAC420IP65 provides safe and effective isolation. It adheres to the BS EN 60947-3 standard, ensuring compliance for electrical installations. Its 4-pole configuration guarantees complete disconnection for maximum safety during maintenance.

Compact and Durable Design

This isolator features a compact footprint, making it suitable for installations where space is limited. Despite its size, it doesn't compromise on durability. The tough polycarbonate enclosure provides IP65 protection, safeguarding the internal components against dust and water ingress, as confirmed by the product datasheet.

Safety Features Included

Prioritising user safety, the Garo SIAC420IP65 includes an interlocked mechanism preventing the cover from being removed while the switch is on. The handle is also padlockable in the 'OFF' position, allowing for secure lockout/tagout procedures during servicing or repairs.

Why Evergy Recommends the Garo SIAC420IP65

This compact Garo isolator is a great option for lower current AC needs because:

  • Ideal 20A Rating: Suitable for many common AC circuits, including lighting and smaller inverters.
  • Space-Saving Size: Compact dimensions allow for flexible installation options.
  • Weatherproof Reliability: IP65 rating ensures suitability for indoor and outdoor use.
  • Essential Safety: Compliant with standards and features a padlockable handle.

It offers precise control over specific AC circuits, helping you manage energy safely and efficiently, potentially optimising usage based on energy tariffs.

Key Technical Details

  • Model: SIAC420IP65
  • Current Rating (AC-22): 20A
  • Poles: 4 (3P+N)
  • IP Rating: IP65
  • Terminals: Suitable for 6-10mm² cables

For comprehensive specifications, please refer to the datasheet tab.

Isolate Your AC Circuits Safely

Choose the Garo SIAC420IP65 AC Isolator for reliable 20A circuit control. Add it to your basket and browse our selection of Solar Optimisers and Meters and other essential Electrical Accessories.
