Sync Energy Link 7.4kW Smart EV Charger (Recessed or Surface)

Sync Energy Link – Ultra-Slim Smart EV Charger for Modern Homes

The Sync Energy Link is a design-focused 7.4kW smart EV charger created for properties where space, aesthetics and performance all matter. With a recessed depth of just 37mm, it sits almost flush with the wall, delivering a clean architectural finish without compromising charging capability.

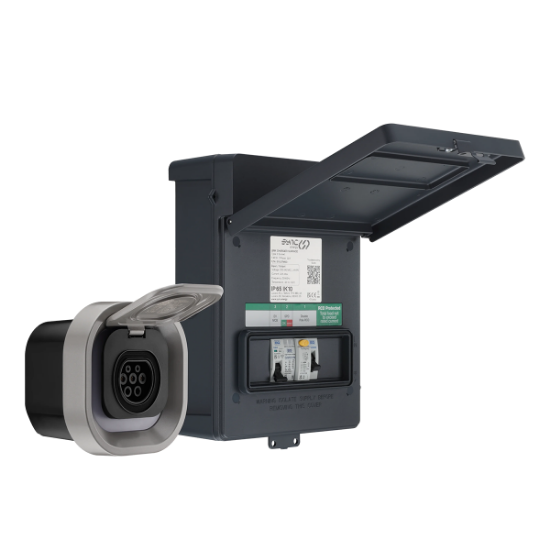

The charger uses a two-part design consisting of a compact charging outlet and a separate metal control box, allowing flexible positioning and easier installation across a range of property types.

Recessed or Surface Mounted Flexibility

The Link is available in recessed and surface-mounted versions to suit different building layouts. This allows the charging outlet to be positioned exactly where needed while keeping the main control unit hidden from view.

• Recessed installation for ultra-flush finish
• Surface mounted option for retrofit projects
• Separate control box up to 50m away
• Clean and discreet appearance

Smart Charging & Connectivity

The Sync Energy Link supports smart charging via Wi-Fi and LAN connectivity, with optional 4G models available. This enables remote monitoring, scheduling and integration with compatible smart energy platforms.

• Wi-Fi connectivity
• LAN connection
• Optional 4G models
• OCPP 1.6J compatibility
• Over-the-air updates

Smart charging features allow users to manage charging times and optimise energy usage around cheaper tariff periods or solar generation.

Solar Compatibility & Energy Management

The charger supports solar-aware charging modes, allowing surplus generation from PV systems to be prioritised when available. This helps increase self-consumption and reduce grid reliance where solar systems are installed.

• Solar charging support
• Tariff-aware scheduling
• Energy monitoring via app
• Efficient home charging

Compact Design with Full Protection

Despite its slim profile, the Link includes integrated protection systems to meet UK charging standards and ensure safe operation.

• PEN fault protection
• Type 2 SPD
• 40A MCB
• Type A RCD
• DC leakage protection

The charger is rated IP65 for outdoor installation and IK10 for impact resistance, making it suitable for long-term external use.

Designed for Modern Properties

The Sync Energy Link is particularly suited to new build developments, architectural projects and homeowners who want a charging solution that blends into the property rather than dominating it.

• Ultra-slim 37mm recessed depth
• Compact square face design
• Discreet wall integration
• Suitable for retrofit or new build

Technical Specification Highlights

• Output: 7.4kW single phase
• Socket: Type 2
• Connectivity: Wi-Fi, LAN, optional 4G
• Mounting: Recessed or surface
• IP rating: IP65
• Impact rating: IK10
• OCPP: 1.6J compatible
• Warranty: 3 years

Recessed EV Charger for a Clean Architectural Finish

Most home EV chargers are surface mounted and can appear bulky on modern properties. The Sync Energy Link takes a different approach. With a recessed installation option and an ultra-slim 37mm profile, it sits almost flush with the wall to create one of the most discreet EV charging solutions currently available in the UK.

This makes it particularly popular with architects, developers and homeowners who want to maintain a clean exterior aesthetic while still installing a fully capable smart charger. When recessed, the visible face remains minimal while the main control box can be positioned elsewhere, helping preserve both appearance and space.

• Flush-fit recessed design
• Minimal visual impact on property
• Ideal for architectural builds
• Suitable for rendered or brick finishes
• Clean look for modern homes

Surface Mounted Option for Retrofit Projects

Where recessed installation is not possible, the surface-mounted version provides the same smart functionality and compact design in a slightly deeper housing. This makes it suitable for retrofit installations while keeping the overall footprint smaller than many traditional chargers.

Both versions share the same charging performance, safety features and connectivity options, allowing installers and homeowners to choose the mounting style that best suits the property.

Designed for New Builds & Premium Developments

The Sync Energy Link has been developed with modern housing and premium developments in mind. Its compact form factor allows developers to integrate EV charging into properties without impacting visual design or available wall space.

This makes it particularly suited to:

• New build housing
• Architect-led projects
• Garage installations
• High-end residential properties
• Developments with limited wall depth

Smart Charging with Future Compatibility

With built-in smart connectivity and OCPP compatibility, the charger is ready for evolving energy tariffs and future grid integration. Firmware updates can be delivered over the air, ensuring continued compatibility with smart charging platforms.

This future-ready approach helps protect long-term value, ensuring the charger remains compatible with evolving EV charging requirements and smart energy systems.

Why We Recommend the Sync Energy Link

At Evergy, we focus on EV chargers that combine performance with long-term usability. The Sync Energy Link stands out because it offers something genuinely different: a discreet, compact charger that integrates into a property rather than dominating it.

• One of the slimmest EV chargers available
• Recessed installation option
• Smart tariff and solar support
• Future-ready connectivity
• Suitable for new build or retrofit

If appearance matters as much as functionality, the Sync Energy Link is a strong choice for modern UK homes looking for a cleaner EV charging solution.

Sync Energy Link – Frequently Asked Questions
