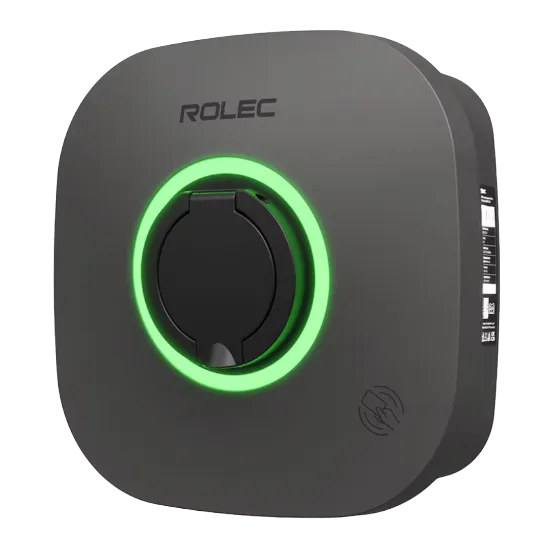

Rolec EVO 22kW Smart EV Charger – Type 2 Socket, Grey

Rolec EVO 22kW: The OCPP-Enabled EV Charger for Commercial & Fleet Use

The Rolec EVO 22kW is built for commercial premises, public car parks, and high-demand EV charging stations. With advanced features such as 4G connectivity, OCPP 1.6 back-office integration, and rapid three-phase charging, it’s the perfect long-term solution for scalable EV infrastructure.

High-Speed 22kW Three-Phase Charging

This model delivers up to 22kW output through a universal Type 2 socket, making it ideal for workplace or destination environments where drivers need faster turnaround times. Unlike slower domestic options, this charger maximises throughput and uptime in busy environments.

Smart Network Integration with OCPP

The Rolec EVO 22kW is fully OCPP 1.6 compliant, making it compatible with any modern charge point management system. Businesses and operators can monitor usage, billing, faults, and remote diagnostics through their preferred backend provider — no locked-in software here.

4G, Wi-Fi and Ethernet Connectivity

Built-in 4G (with SIM slot), Wi-Fi and hardwired Ethernet give maximum installation flexibility. The charger stays connected for remote monitoring, firmware updates, and scheduled load management. Optional Bluetooth support simplifies installer setup.

Engineered for Durability and Security

• Impact-resistant IK10 casing and IP54 weather protection
• Corrosion/fire-resistant housing for indoor or outdoor use
• Tamper detection with security logs and breach alerts

Made for high-traffic areas, this charger thrives in commercial conditions.

Compatible with Smart Tariffs & Solar Systems

Eco and Eco+ modes let you configure charging to use solar PV or take advantage of off-peak energy tariffs. This is a rare feature for commercial chargers and gives businesses more control over energy costs and sustainability targets.

Why Evergy Recommends This Product

• Excellent for commercial EV charging installations with high usage needs
• OCPP integration ensures compatibility with any management software
• Secure and durable with built-in PME fault detection — no earth rods required
• A robust upgrade from the 7.4kW home charger for sites with three-phase supply

Ideal For

This model is designed for use in commercial EV charging stations, public car parks, fleet depots, business parks, and retail locations that require a durable, high-output charging solution.

Technical Specifications

• Charging Output: Up to 22kW (32A, three-phase)
• Connectivity: 4G (SIM), Wi-Fi, Ethernet, Bluetooth
• Protection: IP54 / IK10, Type A + DC 6mA RCD built-in
• Size: 260mm x 260mm x 112mm | Colour: Daytona Grey

More technical info available in the data sheet or specification tab.

Complete Your Installation

Don’t forget to explore our EV cabling solutions for workplace and high-load installations. Not sure whether this or the 7.4kW single-phase charger is best? Contact us — we’ll help you design a setup tailored to your building and budget.
